High Pressure Misting System
High-pressure misting systems are a type of cooling system that uses high pressure water to create a fine mist of water droplets. As a result of the extensive surface area of the tiny water droplets, the mist is released into the air and quickly evaporates. As a result of evaporation, the surrounding air is cooled by absorbing heat from it.
High Pressure Misting System
What Is A High Pressure Misting System?
High-pressure misting systems are a type of cooling system that uses high pressure water to create a fine mist of water droplets. As a result of the extensive surface area of the tiny water droplets, the mist is released into the air and quickly evaporates. As a result of evaporation, the surrounding air is cooled by absorbing heat from it.
High-pressure pump: This is the heart of the misting system, responsible for generating the high-pressure water flow required to create the fine mist.
Water supply: A water source is needed to feed the high pressure misting pump.
Stainless steel tubing or hoses: These high-pressure lines carry water from the pump to the misting nozzles.
Misting nozzles: These specialized nozzles break down water into tiny droplets, creating a mist.
Control system: In more advanced setups, there may be a control system to regulate the pump, allowing you to adjust the misting intensity or set up timers for automated operation.
Kindly get in touch with us if you have any inquiries...
Kindly get in touch with us if you have any inquiries
Reach us through
- Head Office : E-60, Sector 6, NOIDA
- Registered Office :13/8, Shakti Nagar, Delhi 110007
- Contact : +91 9810278383, +91 9818462891
Send us a Message
High Pressure Misting System best for
Hotel Lawns • Home Balcony • Open Air Restaurant • Marriage Pandal • Workshops • Farm House • Terrace Gardens • Open Air Parties • Open Air Waiting Area • Poultry Farm • Factories • For Humidification • Stud Farm • Amusement Park • Water Parks • Schools • Hospital Open Areas • Cooling Animals • Golf Course • Malls
• Hotel Lawns
• Home Balcony
• Open Air Restaurant
• Marriage Pandal
• Workshops
• Farm House
• Terrace Gardens
• Open Air Parties
• Open Air Waiting Area
• Poultry Farm
• Factories
• For Humidification
• Stud Farm
• Amusement Park
• Water Parks
• Schools
• Hospital Open Areas
• Cooling Animals
• Golf Course
• Home Terrace
• Roof Top Restaurants
• Sports Arenas
• Railway Platforms
• Warehouses
• Pool Sides
• Public Parks

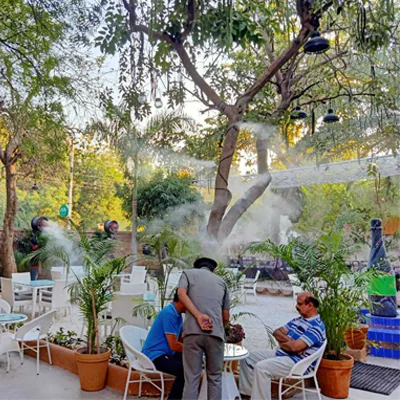

Outdoor dining areas: Restaurants and cafes often use misting systems to keep patrons comfortable during the hot summer months.
Sporting events: Stadiums and outdoor sports facilities utilize outdoor misting systems to cool down spectators and athletes.
Theme parks and outdoor attractions: Misting systems are employed to relieve heat for visitors waiting in line or walking around.
Greenhouses: High-pressure misting systems can help maintain optimal temperature and humidity levels for plants.
Livestock and poultry farming: Misting systems keep animals cool in hot weather, improving their well-being and productivity.
It’s important to note that high-pressure misting systems should be installed and operated carefully to avoid slippery surfaces and excessive moisture buildup in enclosed spaces. The water source should be adequately treated to avoid clogging the nozzles with impurities or minerals. Regular maintenance is essential to ensure system functioning and longevity.
All of The Designo International’s misting systems manufacturers are designed and manufactured to be easily installed with customised application, cost effective to run and require minimal maintenance.
The Designo International’s latest innovation in climate control with sophisticated sensor integration and is appropriate for providing outdoor cooling through the principle of evaporative cooling for various applications, be it residential, commercial or industrial.
The Designo International offers a fine quality range of High Pressure Misting Systems, cooling and misting systems, which have various features including high performance, strong edges, easy to use and low maintenance. These products also have an option of customization as per our clients. We offer demonstration to help our clients.
Our Project
High-pressure misting systems are commonly used for outdoor cooling in various settings, such as:
Outdoor dining areas: Restaurants and cafes often use misting systems to keep patrons comfortable during the hot summer months.
Sporting events: Stadiums and outdoor sports facilities utilize misting systems to cool down spectators and athletes.
Theme parks and outdoor attractions: Misting systems are employed to relieve heat for visitors waiting in line or walking around.
Greenhouses: High-pressure misting systems can help maintain optimal temperature and humidity levels for plants.
Livestock and poultry farming: Misting systems keep animals cool in hot weather, improving their well-being and productivity.
It’s important to note that high-pressure misting systems should be installed and operated carefully to avoid slippery surfaces and excessive moisture buildup in enclosed spaces. The water source should be adequately treated to avoid clogging the nozzles with impurities or minerals. Regular maintenance is essential to ensure system functioning and longevity.
We can cool down almost anything outdoors.
* High Pressure Misting / Fogging Pump
* High Pressure Energy saving Misting Pump with Heat Sensor (Imported).
* Pump Unit : 1000 PSI Imported High Pressure Misting Pump with overflow valve system.
* Imported High Pressure HDPE / Nylon pipe line.
* Special features: – Auto trip off – over load / overheat protection.
* Dry run protection (Optional).
* 20” Housing for filtration of water.
* Misting is controlled by Branded Control Valve –Zoloto with Stainless Steel fitting.
* Cleaning Chemical (especially formulated chemical for cleaning the nozzles)
* Fragrance (especially formulated for misting system)
* Anti drip technology integrated in the control panel for world class Misting.
* Stainless Steel Pipe Line of 202 / 304/316 Grade.( Specially drawn).
* HDPE and Nylon High Pressure Pipe line exclusively Imported for High pressure use.
* Stainless Steel Misting Ring.
* Specially Manufactured SS/Brass nut bolt fittings.
* Stainless Steel 304/316 /Imported Brass Push fit fittings.
* Imported High Pressure -Ruby Orifice Nozzle (with filter &Anti drip features )/ Stainless Steel Orifice Brass Nozzles.
Control Panel for the pump with built in features :
* Surge protection
* MCB
* Volt and AMP meter
* Timer
* Control switches
* All assembled in one MS Powder coated lockable box
* Humidity Control System (optional)
* Anti Dripping and Dry Run Protection System is integrated in the control panel
Approx. Price: Rs 16,500 / Piece
- Product Brochure
| Usage/Application | Industrial humidification, Warehouse cooling,Industrial cooling,Dust suppression, Odour control, Cooling for Labour in factory,Outdoor Cooling, Restaurants, Hotels,Resorts,Residential,Farm Houses,Terrace,Animal cooling,Horse stable cooling, Cattle farm cooling,Dairy Farm Cooling, Green House Humidification,Customized cooling solution,Humidification,misting,Fogging,water spray, Outdoor Misting |
| Type Of Property | High Pressure Misting |
| Material | Stainless steel Pipe /HDPE |
| Automation Grade | Automatic /Semi-Automatic |
| Color | Steel Finish / HDPE Black |
| Operating Frequency | 50 Hz |
| Power Source | Electrical -Single phase /Three phase |
| Pump Pressure | 1000 PSI/70 Bar |
| Tank Capacity | Minimum 1000 ltrs |
| Brand | MIST FLOW-The Designo International |
| Country of Origin | Made in India |
| Control Panel with Timer and Anti Dripping System | Yes |
| Mist Output | Ultra Fine / Dense as Per Requirement |
Approx. Price: Rs 16,500 / Piece
- Product Brochure
| Usage/Application | Industrial humidification, Warehouse cooling,Industrial cooling,Dust suppression, Odour control, Cooling for Labour in factory,Outdoor Cooling, Restaurants, Hotels,Resorts,Residential,Farm Houses,Terrace,Animal cooling,Horse stable cooling, Cattle farm cooling,Dairy Farm Cooling, Green House Humidification,Customized cooling solution,Humidification,misting,Fogging,water spray, Outdoor Misting |
| Material | Material |
| Type | Air Cooling |
| Type Of Property | Mist line and weatherproof Fans |
| Automation Grade | Automatic /Semi-Automatic |
| Operating Frequency | 50 Hz |
| Power Source | Electrical -Single phase /Three phase |
| Tank Capacity | Minimum 1000 ltrs |
| Voltage | 220Volt |
| Brand | MIST FLOW-The Designo International |
| Country of Origin | Made in India |
| Control Panel with Timer and Anti Dripping System | Yes |
| Mist Output | Ultra Fine / Dense as Per Requirement |
Approx. Price: Rs 16,500 / Piece
- Product Brochure
| Usage/Application | Industrial humidification, Warehouse cooling,Industrial cooling,Dust suppression, Odour control, Cooling for Labour in factory,Outdoor Cooling, Restaurants, Hotels,Resorts,Residential,Farm Houses,Terrace,Animal cooling,Horse stable cooling, Cattle farm cooling,Dairy Farm Cooling, Green House Humidification,Customized cooling solution,Humidification,misting,Fogging,water spray, Outdoor Misting |
| Type Of Property | Air Cooling |
| Automation Grade | Automatic |
| Warranty | 1 year |
| Material | Stainless Steel /Nylon /PE Pipe |
| Capacity | Minimu 1000 Ltrs |
| Cooling Temp Range | 7 to 10 degree |
| Nozzle | Ruby orifice /SS Orifice |
| Mist Output | Yes |
| Mist Thickness | Ultra Fine/Dense |
| Comtrol Panel wit Timer | Yes |
| Brand | MIST FLOW-The Designo International |
| Country of Origin | Made in India |
FAQs
What are the benefits of using a high-pressure misting system?
The benefits include efficient cooling in hot weather, providing comfort to patrons, athletes, and animals. It can also help maintain ideal humidity levels for plants and reduce dust in certain environments.
Is the mist generated by the system safe to breathe?
Yes, the mist created by high-pressure misting systems is safe to breathe. The water droplets are extremely fine, and the mist evaporates quickly without creating excessive moisture in the air.
How much water does a high-pressure misting system use?
The water consumption depends on the size of the system and the duration of operation. High-pressure misting systems are designed to be efficient, using relatively small amounts of water compared to traditional cooling methods.
Can I adjust the misting intensity?
Yes, many high-pressure misting systems come with adjustable nozzles or controls, allowing you to regulate the misting intensity as needed.
Where can I use a high-pressure misting system?
High-pressure misting systems are commonly used in outdoor dining areas, sports stadiums, theme parks, greenhouses, and livestock farming facilities, among other places where cooling is required.
Are misting systems safe?
Yes, misting systems by The Designo International are safe. They use water (SOFT WATER) mist for cooling without posing any health or safety risks.
What is a high-pressure misting system?
A high-pressure misting system by The Designo International uses pressurized water to create a fine mist, providing effective and refreshing cooling. The water is so finely separated by pressure and nozzles that it instantly evaporates. Based on the evaporative cooling principle the cooling happens best after the accurate mist molecule size is dispersed into the atmosphere with specialised pressure pump and panel.
What is high pressure fog?
Fogging systems operating at 700-1000 psi produce droplets around 15 microns – as fine as the point of a needle. The smaller the droplet the more quickly it can evaporate. The faster it can evaporate the less likely it is to wet the floor, litter, or equipment.
How does a mist pump work?
A mist pump by The Designo International pressurizes water, forcing it through fine nozzles. This creates a fine mist, utilizing evaporative cooling for effective temperature reduction in various applications.
What is the difference between fog and mist cooling systems?
The distinction lies in droplet size. Fog has smaller particles, creating a denser mist. Mist, with larger particles, delivers efficient and targeted cooling, exemplified by The Designo International’s innovative systems.
